腹股沟疝的修复（图文演示）

10. 4DDOMER 穹隆的放置

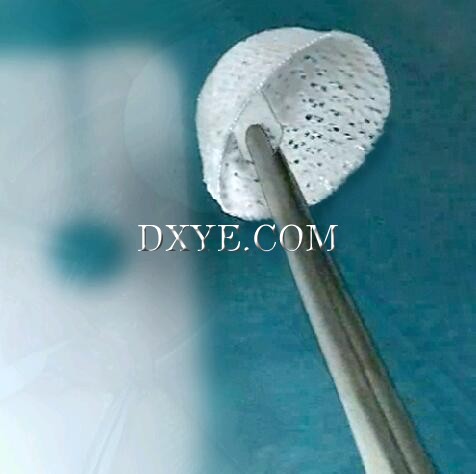

4DDOMER 准备：

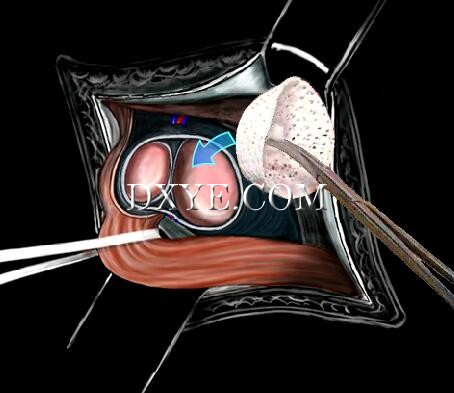

盒子打开，用无损伤镊子夹住穹隆内小的网状结构，植入腹股沟内环，4D穹隆沿着精索中间边缘移动，以便把疝囊稳定的定位在腹膜外。

Introduction into internal inguinal ring:
4DDOMER is pushed along the medial edge of the spermatic cord in order to maintain the hernia sac deep into the preperitoneal space.

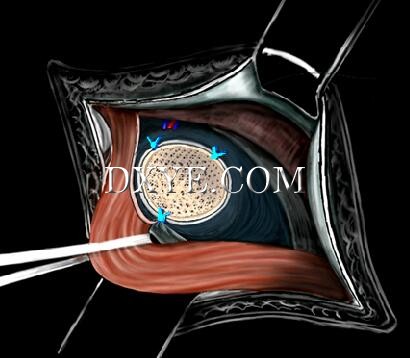

位置和调整
校正位置是否正确，可以通过让患者咳嗽或行瓦氏手法检查，对于肌力好的可以放置3个可吸收或不可吸收的单丝结构。

11. 前网状的放置
• 原理
对于无张力的李奇登斯坦（Lichtenstein）疝根治手术，网状支架结构是用来加强腹股沟平面，支架放置在腹部横筋膜和外斜腱膜间。它延伸过腹股沟三角，确保支架和组织间有足够的连接。适当调整支架，以抵御临近组织的影响，防止复发。这样可以有限的保护支架前部免受过大压力，因此在手术后一个月内必须注意防止支架移位。

• 网状支架

聚丙烯制造的支架，74%的聚合左旋乳酸和26%的聚丙烯有助于增加硬度和便于放置

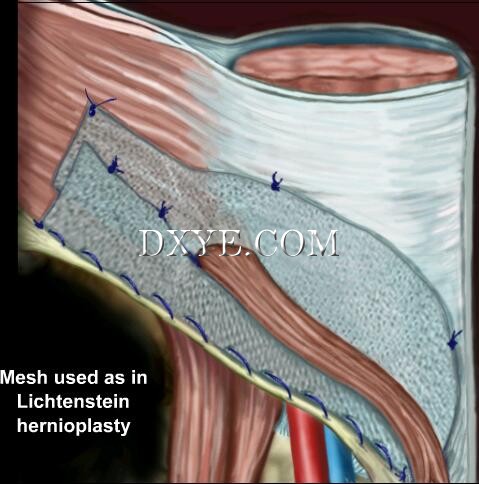

• 李奇登斯坦（Lichtenstein）疝根治手术

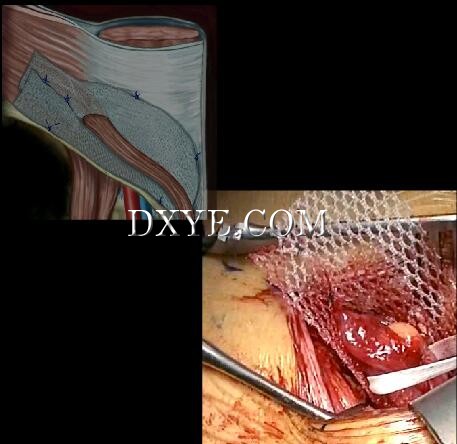

对于无张力的李奇登斯坦（Lichtenstein）疝根治手术，网状支架必须调整使其正好位于外斜腱膜下，前面是腹部横筋膜，后面是精索。这个腔隙的侧面是精索中部，该修补术需要几个固定支点的位置，精索就是该位置。

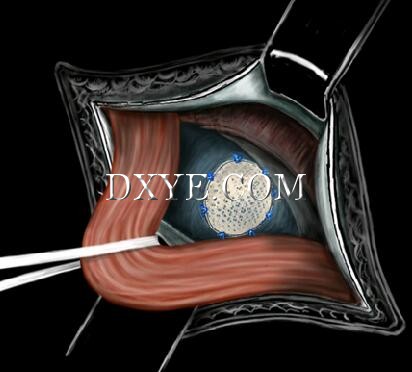

• 4DDOMER 4D穹隆技术

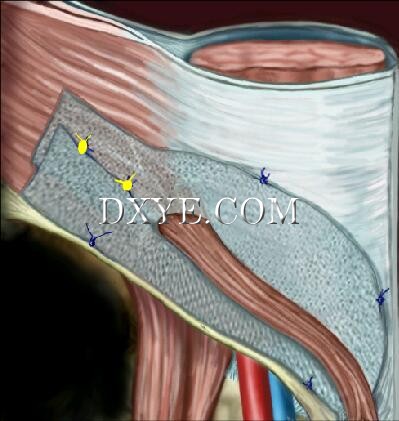

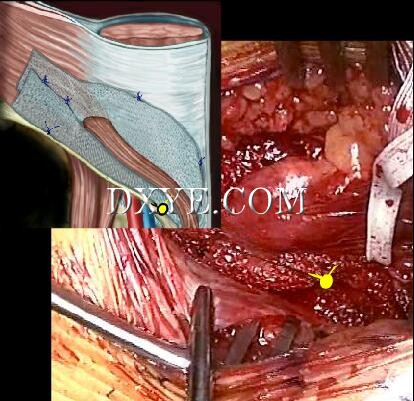

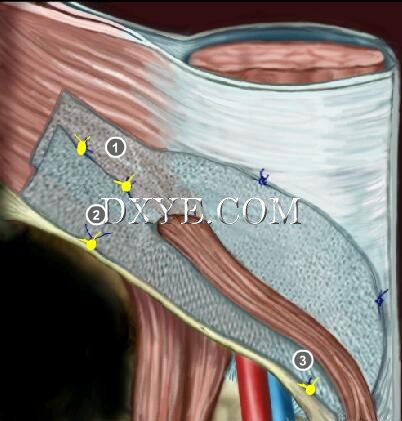

网状支架的放置技术和上面提到的相似，尽管它不需要太多的固定点。4D穹隆是一个抵御腹腔内压力的屏障。一个支点在耻骨棘，2或3个在腹股沟韧带，1或2个在腹股沟镰，1或2个在接近修复手术的侧后面。这样有助于减少手术时间和减轻因调整位置给患者带来的疼痛。

12. 程序结束


网状支架的放置技术和上面提到的相似，尽管它不需要太多的固定点。4D穹隆是一个抵御腹腔内压力的屏障。一个支点在耻骨棘，2或3个在腹股沟韧带，1或2个在腹股沟镰，1或2个在接近修复手术的侧后面。这样有助于减少手术时间和减轻因调整位置给患者带来的疼痛。

13. 其他类型的疝
• 直疝

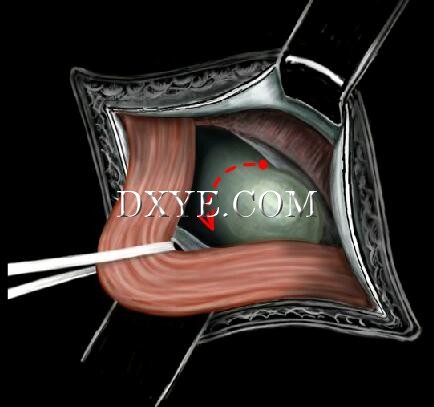

疝囊后部对精索，位于腹股沟管的中部。解剖位置靠近颈部，有时腹部膜的解剖位置就在其颈部。这样有助于使囊尾缩回腹膜前。4D穹隆可以植入腹膜前并且用6到8脚的可吸收或不可吸收的穹隆调整腹部横筋膜。

• 相关的疝

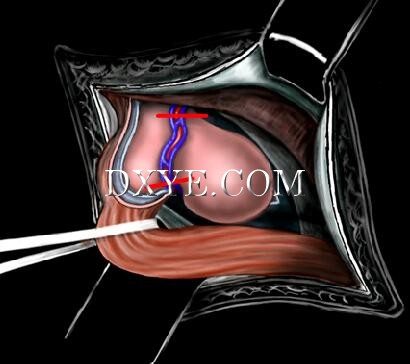

对于上腹部静脉血管重叠疝，血管应该仔细分离进囊，这样有利于4D穹隆进入后部空间。对于距离较远（深）的疝，可以使用两个4D穹隆。

14. 手术后管理


手术后立即处理:
手术后经过唤醒患者马上可以起床，手术后疼痛比较轻，可以口服NASID1到4天，手术后恢复工作情况，要依赖于手术意愿、手术前准备、教育情况，一般患者行无张力疝根治手术后，依工作职业和医院检查，2到14天可以恢复工作。

随诊:
4D穹隆修复手术在腹壁留下的伤口比较小。在手术后2到6个月观察穹隆的变化。聚合左旋乳酸制成的穹隆，基本可以完全吸收。由聚丙烯和聚合左旋乳酸合成的网架会少炎症反映（和纯的聚丙烯制造的比较）。但它也可能因体积大而引起Ⅱ型纤维细胞增生。

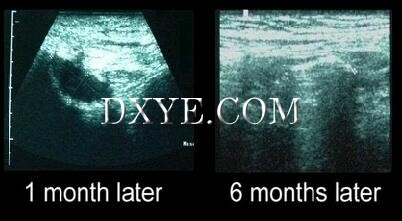

手术后超声波回顾分析1和6个月的患者。4D穹隆结构和聚合左旋乳酸在6个月的时候基本消失

15. 讨论

不可吸收的支架获得比较长的作用时间 (Goldstein, 1999; Bringman et al., 2003)，单丝聚丙烯支架近来被全球接受(Folscher et al., 2000; Usher and Gannon, 1959)，然而，修复支架周遍的异物反映(Klosterhalfen et al., 2002; Klosterhalfen et al., 1998)，都是大量不可吸收材料引起的。现在也引起了聚丙烯支架的使用争议(Klinge et al., 1999)。

复合材料支架的目标是减少炎症反映，特别是对简单修复手术中使用聚合左旋乳酸和筋膜植入。4D穹隆是完全满足持批评观点而设计的。它通过前支架的后表面来减少腹腔压力，可以使疝囊缩小，当然它不是用在需要进行疝囊切除的病例。

16. 结论
4D穹隆植入是简单的治疗观点，操作简单，可以减少长期疼痛的风险；可以在局部麻醉（我机构80%患者）或浸润麻醉下进行，手术后早期不适感降低；PLLA较少的吸收残余物，较低的局部Ⅰ型和Ⅲ型胶元纤维反应，对于中等口径的腹股沟疝的年轻和体型小的患者都可以使用 ；手术后复发的风险依手术记录看是比较少的。

17. Reference
▶
Adler RH. An evaluation of surgical mesh in the repair of hernias and tissue defects. Arch Surg
1962;85:836-44.
Amid PK. Classification of biomaterials and their related complications in abdominal wall hernia
surgery. Hernia 1997;1:15-21.
Amid PK. Lichtenstein tension-free hernioplasty:Its inception, evolution, and principles. Hernia
2004;8:1-7.
Arai H, Sato K, Okuda O, Miyajima M, Hishii M, Nakanishi H, Ishii H. Early experience with poly Llactic
acid bioabsorbable fixation system for paediatric craniosynostosis surgery. Report of 3 cases.
Acta Neurochir 2000;142:187-92.
Bay-Nielsen M, Perkins FM, Kehlet H. Danish Hernia Database. Pain and functional impairment 1 year
after inguinal herniorrhaphy:a nationwide questionnaire study. Ann Surg 2001;233:1-7.
Bringman S, Ramel S, Heikkinen TJ, Englund T, Westman B, Anderberg B. Tension-free inguinal
hernia repair:TEP versus mesh-plug versus Lichtenstein:a prospective randomized controlled trial.
Ann Surg 2003;237:142-7.
DeBord JR. The historical development of prosthetics in hernia surgery.Surg Clin North Am
1998;78:973-1006.
Evans GR, Brandt K, Katz S, et al. Bioactive poly(L-lactic acid) conduits seeded with Schwann cells for
peripheral nerve regeneration. Biomaterials 2002;23:841-8.
Folscher DJ, Jamali FR, Leroy J, Marescaux J. Utility of a new soft, non-woven polypropylene mesh
for the transabdominal extraperitoneal laparoscopic hernia repair:preliminary results. Hernia
2000;4:228-33.
Fuchs JR, Pomerantseva I, Ochoa ER, Vacanti JP, Fauza DO. Fetal tissue engineering:in vitro
analysis of muscle constructs. J Pediatr Surg 2003;38:1348-53.
Furukawa KS, Ushida T, Toita K, Sakai Y, Tateishi T. Hybrid of gel-cultured smooth muscle cells with
PLLA sponge as a scaffold towards blood vessel regeneration. Cell Transplant 2002;11:475-80.
Goldstein HS. Selecting the right mesh. Hernia 1999;3:23-6.
Isotalo T, Talja M, Valimaa T, Tormala P, Tammela TL. A bioabsorbable self-expandable, selfreinforced
poly-L-lactic acid urethral stent for recurrent urethral strictures:long-term results. J Endourol
2002;16:759-62.
Junge K, Klinge U, Rosch R, Klosterhalfen B, Schumpelick V. Functional and morphologic properties
of a modified mesh for inguinal hernia repair. World J Surg 2002;26:1472-80.
Juutilainen T, Hirvensalo E, Partio EK, Patiala H, Tormala P, Rokkanen P. Complications in the first
1,043 operations where self-reinforced poly-L-lactide implants were used solely for tissue fixation in
orthopaedics and traumatology. Int Orthop 2002;26:122-5.
Kellomaki M, Niiranen H, Puumanen K, Ashammakhi N, Waris T, Tormala P. Bioabsorbable scaffolds
for guided bone regeneration and generation.Biomaterials 2000;21:2495-2505.
Klinge U, Klosterhalfen B, Conze J. Modified mesh for hernia repair that is adapted to the physiology
of the abdominal wall. Eur J Surg 1998;164:951-60.
Klinge U, Klosterhalfen B, Muller M, Ottinger AP, Schumpelick V. Shrinking of polypropylene mesh in
vivo:an experimental study in dogs. Eur J Surg 1998;164:965-9.
Klinge U, Klosterhalfen B, Muller M, Schumpelick V. Foreign body reaction to meshes used for the
repair of abdominal wall hernias. Eur J Surg 1999;165:665-73.
Klinge U, Schumpelick V, Klosterhalfen B. Functional assessment and tissue response of short- and
long-term absorbable surgical meshes. Biomaterials 2001;22:1415-24.
Klosterhalfen B, Junge K, Hermanns B, Klinge U. Influence of implantation interval on the long-term
biocompatibility of surgical mesh. Br J Surg 2002;89:1043-8.
Klosterhalfen B, Klinge U, Hermanns B, Schumpelick V. Pathology of traditional surgical nets for
hernia repair after long-term implantation in humans Chirurg 2000;71:43-51.
Klosterhalfen B, Klinge U, Schumpelick V. Functional and morphological evaluation of different
polypropylene-mesh modifications for abdominal wall repair. Biomaterials 1998;19:2235-46.
Kumar S, Wilson RG, Nixon SJ, Macintyre IM. Chronic pain after laparoscopic and open mesh repair
of groin hernia. Br J Surg 2002;89:1476-9.
Lansman S, Serlo W, Linna O, Pohjonen T, Tormala P, Waris T, Ashammakhi N. Treatment of pectus
excavatum with bioabsorbable polylactide plates:Preliminary results. J Pediatr Surg 2002;37:1281-6.
LeBlanc KA. Complications associated with the plug-and-patch method of inguinal herniorraphy.
Hernia 2001;5:135-8.
Lowham AS, Filipi CJ, Fitzgibbons RJ, Stoppa R, Wantz GE, Felix EL, Crafton WB. Mechanisms of
hernia recurrence after preperitoneal mesh repair. Ann Surg 1997;225:422-31.
McGillicuddy JE. Prospective randomized comparison of the Shouldice and Lichtenstein hernia repair
procedures. Arch Surg 1998;133:974-8.
Melis P, van der Drift DG, Sybrandy R, Go PM. High recurrence rate 12 years after primary inguinal
hernia repair. Eur J Surg 2000;166:313-4.
Nicholson S. Inguinal hernia repair. Br J Surg 1999;86:577-8.
Nyhus LM. Ubiquitous use of prosthetic mesh in inguinal hernia repair:the dilemma. Hernia
2000;4:184-6.
Pélissier EP, Blum D, Damas JM, Marre P. The plug method in inguinal hernia:a prospective
evaluation. Hernia 1999;4:201-4.
Raymond CR. Milestones in the history of hernia surgery:Prosthetic repair. Hernia 2004;8:8-14.
Schumpelick V. Does every hernia demand a mesh repair? A critical review. Hernia 2001;5:5-8.
Schumpelick V. Hernien 4th edition 2000;Thieme Verlag.
Schumpelick V, Klinge U. Prosthetic implants for hernia repair.Br J Surg 2003;90:1457-8.
Scott DJ, Thomas WK, John JP, Robert EC. A comparison of prosthetic materials used to repair
abdominal wall defects. Surgery 1983;94:392-8.
Stoppa R. About biomaterials and how they work in groin hernia repairs. Hernia 2003;7:57-60.
Tamai H, Igaki K, Kyo E, Kosuga K, Kawashima A, Matsui S, Komori H, Tsuji T, Motohara S, Uehata
H. Initial and 6-month results of biodegradable poly-l-lactic acid coronary stents in humans. Circulation
2000;102:399-404.
Taylor SG, O’Dwyer PJ. Chronic groin sepsis following tension-free inguinal hernioplasty. Br J Surg
1999;86:562-5.
Usher FC, Gannon JP. Marlex mesh, a new plastic mesh for replacing tissue defects. I. Experimental
studies. AMA Arch Surg 1959;78:131-7.
Usher FC, Ochsner J, Tuttle LL Jr. Use of marlex mesh in the repair of incisional hernias. Am Surg
1958;24:969-74.
Ushida T, Furukawa K, Toita K, Tateishi T. Three-dimensional seeding of chondrocytes encapsulated
in collagen gel into PLLA scaffolds. Cell Transplant 2002;11:489-94.
Vrijland WW, van den Tol MP, Luijendijk RW, et al. Randomized clinical trial of non-mesh versus mesh
repair of primary inguinal hernia. Br J Surg 2002;89:293-7.
