腹腔镜改进HILL胃镜：«SNOW »技术（图文演示）

10. Mobilization/esophagus
• Principles

The following structures are respectively dissected:
1. Inferior part of the lesser omentum
2. Phrenoesophageal ligament
3. Phrenogastric ligament

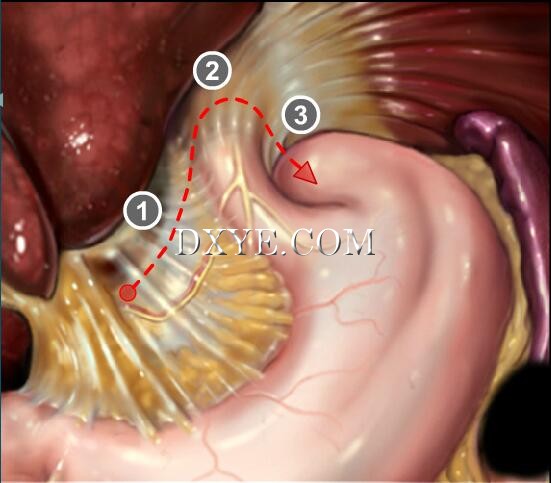

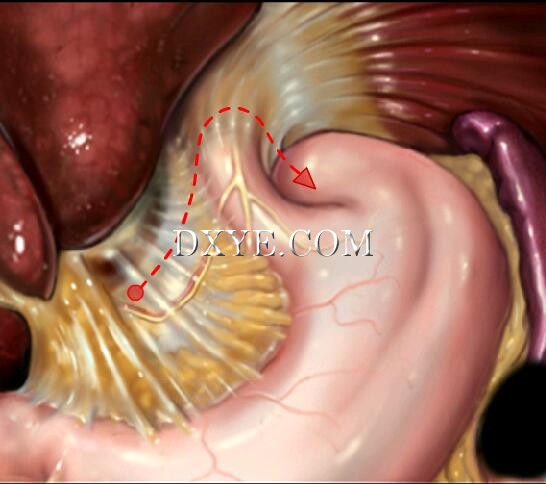

• Peritoneal layer opening


1. Caudate lobe of the liver
2. Right crus
3. Esophagus and anterior vagus nerve
4. Left crus
5. Aorta
The gastrohepatic ligament is divided. The dissection is continued across the attenuated phrenoesophageal ligament near its origin in the diaphragm, and then posteriorly over the left crus, exposing the esophagus, the right and left crura, and the esophagocrural grooves.

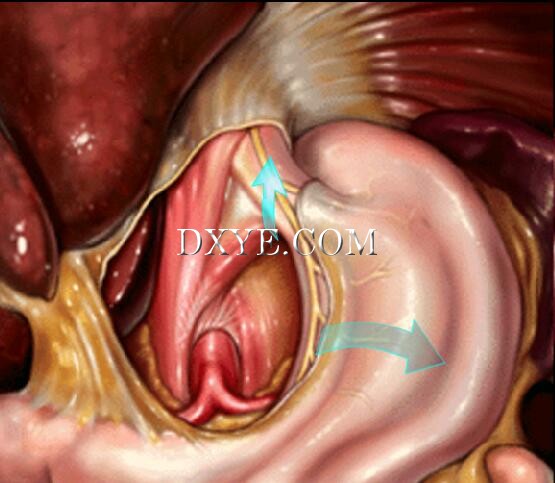

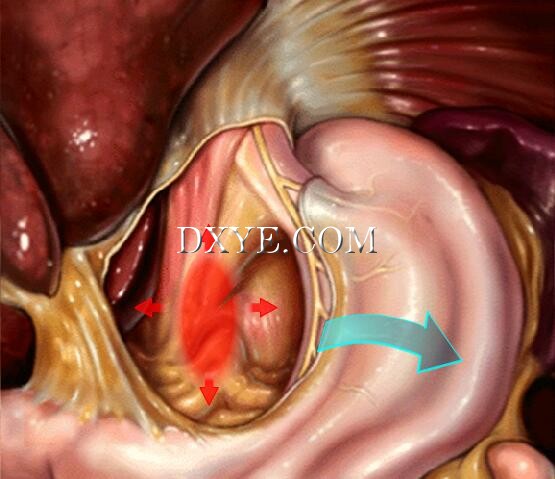

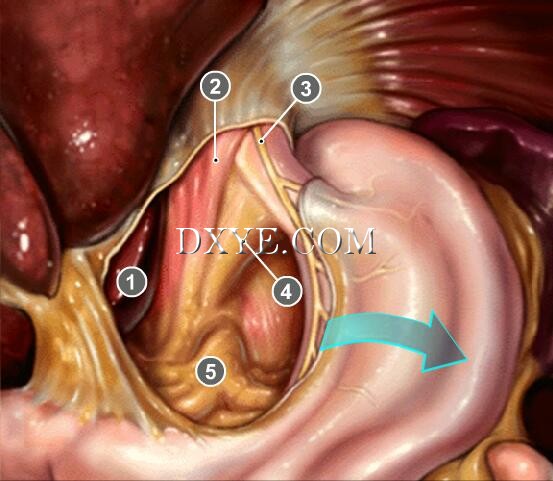

• Crura/ preaortic region dissection

1. Crural decussation
2. Right crus
3. Left crus
4. Arcuate ligament
5. Celiac trunk
The right crus is bluntly dissected on its left aspect, beginning slightly beyond the crural muscle decussation and continuing until the origin of the celiac trunk is visualized. The arcuate ligament is visualized during this operative step.

11. Suturing/crura
• Objective

The aim is to restore an anatomically correct position while preventing stenosis of the hiatus.

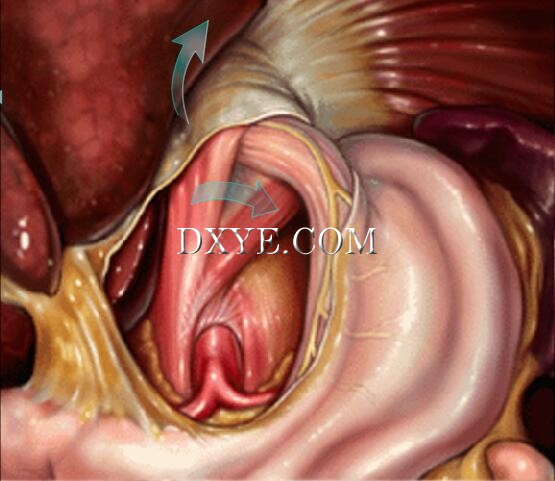

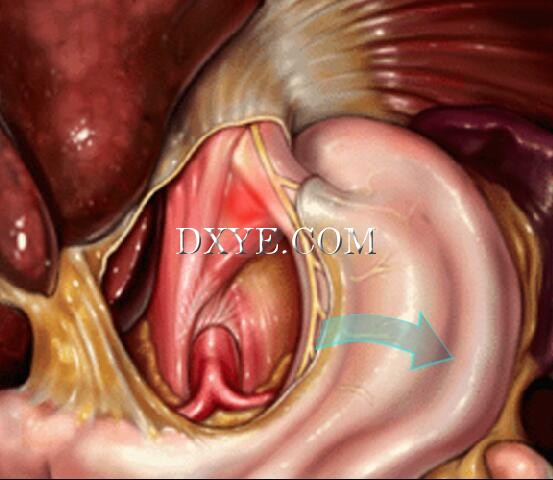

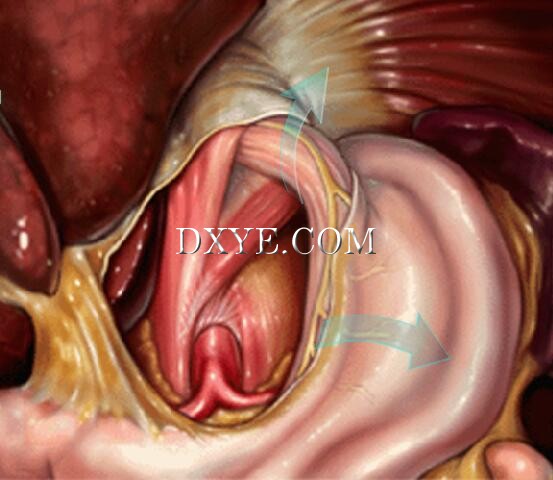

• Anterior esophageal retraction

The esophagus is retracted anteriorly, exposing both crura and the crural tendon, just proximal to its insertion into the median arcuate ligament.

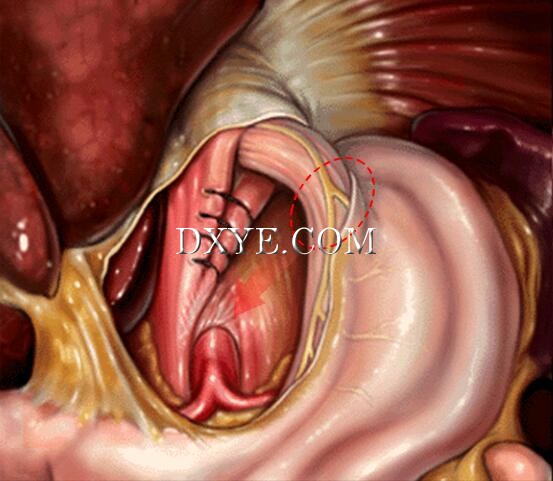

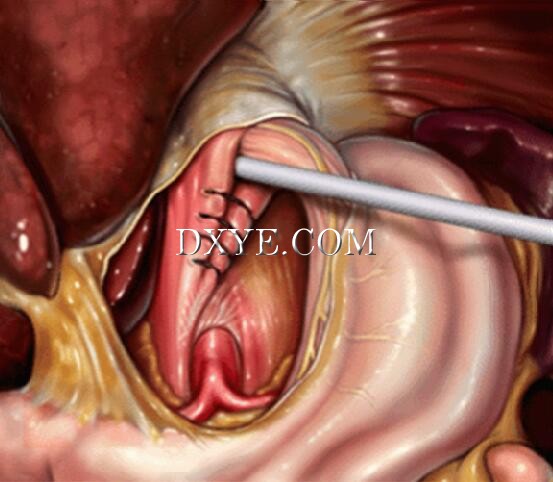

• Repair of crural defect



The crural defect is closed with a 0 polypropylene (PPP) suture in a running fashion starting at the superior edge of the crural decussation. The hiatal opening is assessed as sufficient with a 1 cm open grasper.
The suture is tied, approximating the crural muscles without strangulation.

12. Esophagogastropexy
• Principles


By lowering the position of the cardia of the stomach, the normal anatomy of the ARZ is restored, thus enabling the recreation of the angle of His.

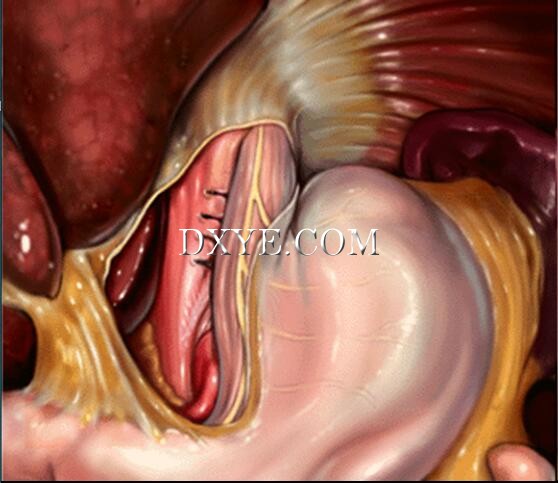

• Anchoring the cardia


The distal abdominal esophagus is fixed by suturing the posteriomedial wall of the cardia to the body of the crural decussation and tendon with a figure-of-eight 0 PPP suture.

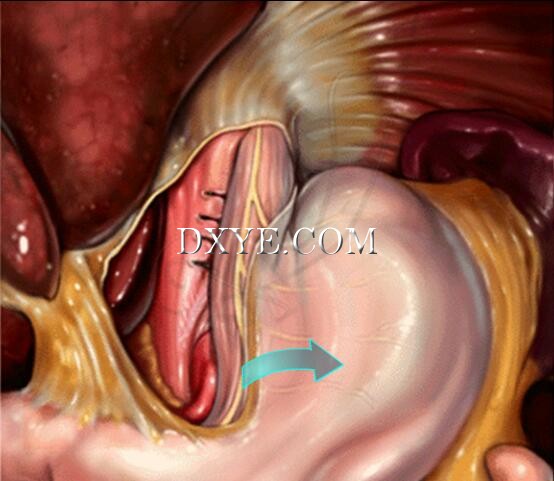

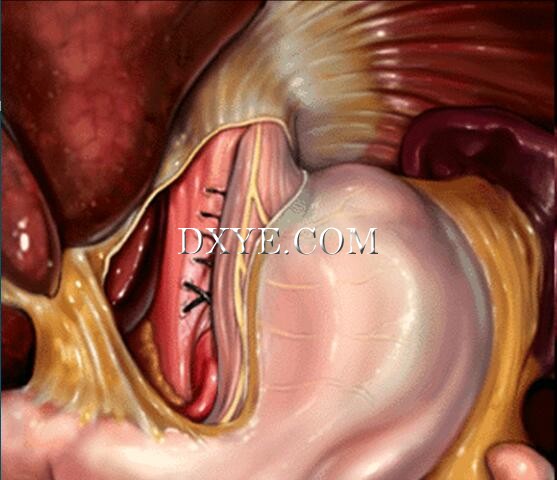

• Esophagogastropexy

The EGV is re-established by suturing the fundus of the stomach to the entire length of the abdominal esophagus and to the diaphragm with a running, 2-0 PPP suture.

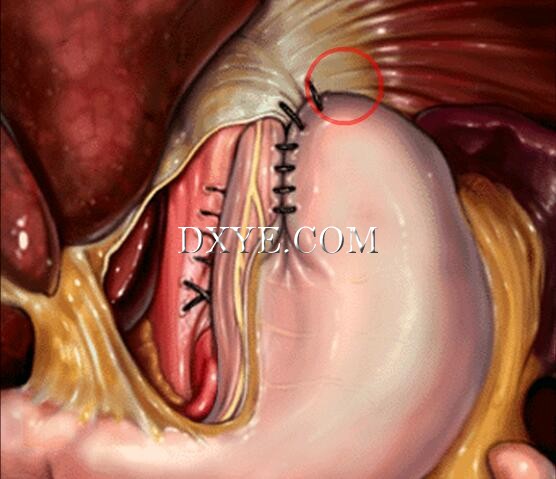

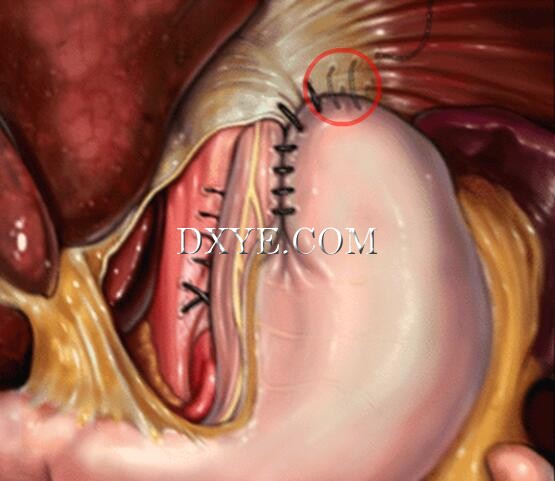

• Final suture strengthening



The final running stitch anchors the fundus to the diaphragm, while reinforcing and protecting the previous stitch (which included the stomach, crura, phrenoesophageal ligament and proximal end of the abdominal esophagus).

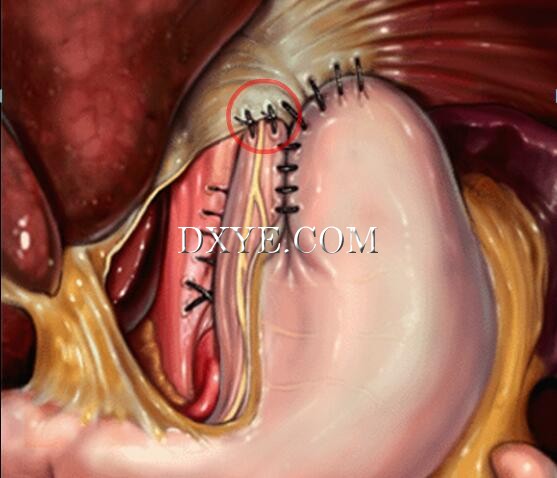

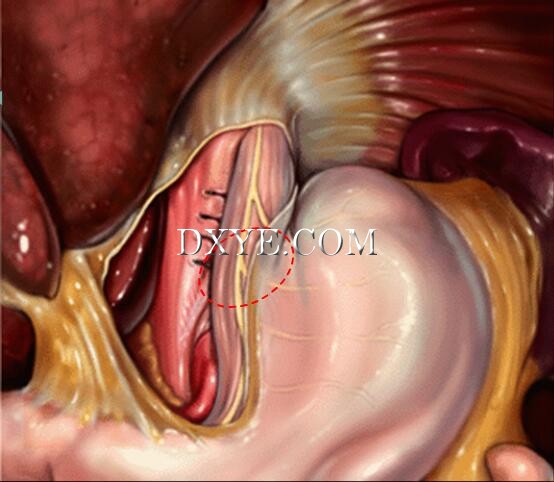

The phrenoesophageal ligament is then sutured to the proximal abdominal esophagus with several interrupted 4-0 PPP sutures.
The sutures are placed so as not to create tension or injure the vagus nerves.
The entire abdominal esophagus is now secured within the abdominal cavity, restoring both the LESE and the EGV.

13. Postop management

▶
The nasogastric tube is removed a few hours after the end of the procedure.
Fluid intake begins on the day of the procedure.
Solid intake begins on the first postoperative day.
The patient usually leaves hospital on the second postoperative day.

14. Reference

▶
Ackermann C, Bally H, Rothenbuehler JM, Harder F. Die Operation bei paraosophagealer Hiatushernie: Technik und Ergebnisse. Schweiz Med Wochenschr 1989;119:723-5.

Anvari M, Allen C. Laparoscopic Nissen fundoplication: two-year comprehensive follow-up of a technique of minimal paraesophageal dissection. Ann Surg 1998;227:25-32.

Armstrong D, Bennett JR, Blum AL, Dent J, De Dombal FT, Galmiche JP et al. The endoscopic assessment of esophagitis: a progress report on observer agreement. Gastroenterology 1996;111:85-92.

Bais JE, Bartelsman JF, Bonjer HJ, Cuesta MA, Go PM, Klinkenberg-Knol EC et al. Laparoscopic or conventional Nissen fundoplication for gastro-oesophageal reflux disease: randomised clinical trial. The Netherlands Antireflux Surgery Study Group. Lancet 2000;355:170-4.

Cadière, GB. Traitement du reflux gastro-œsophagien par cœliovidéoscopie. Encyclopédie Médico-Chirurgicale, Techniques chirurgicales – Appareil digestif, 40-189, 1995, 10 p.

Carlson MA, Condon RE, Ludwig KA, Schulte WJ. Management of intrathoracic stomach with polypropylene mesh prosthesis reinforced transabdominal hiatus hernia repair. J Am Coll Surg 1998;187:227-30.

Casabella F, Sinanan M, Horgan S, Pellegrini CA. Systematic use of gastric fundoplication in laparoscopic repair of paraesophageal hernias. Am J Surg 1996;171:485-9.

Conférence de consensus franco-belge: Reflux gastro-oesophagien de l'adulte--diagnostic et traitement. Paris, France, 21-22 janvier 1999. Proceedings. Gastroenterol Clin Biol 1999;23:S1-320.

Cuschieri A. Laparoscopic antireflux surgery and repair of hiatal hernia. World J Surg 1993;17:40-5.

Dallemagne B, Weerts JM, Jehaes C, Markiewicz S, Lombard R. Laparoscopic Nissen fundoplication: preliminary report. Surg Laparosc Endosc 1991;1:138-43.

Dallemagne B. Endoscopic approaches to oesophageal disease. Baillieres Clin Gastroenterol 1993;7:795-822.

Dallemagne B, Weerts JM, Jehaes C, Markiewicz S, Lombard R. Techniques and results of endoscopic fundoplication. Endosc Surg Allied Technol 1993;1:72-5.

Dallemagne B, Taziaux P, Weerts J, Jehaes C, Markiewicz S. Chirurgie laparoscopique du reflux gastro-oesophagien. Ann Chir 1995;49:30-6.

Dallemagne B, Weerts JM, Jehaes C, Markiewicz S. Causes of failures of laparoscopic antireflux operations. Surg Endosc 1996;10:305-10.

Dallemagne B, Weerts JM, Jeahes C, Markiewicz S. Results of laparoscopic Nissen fundoplication. Hepatogastroenterology 1998;45:1338-43.

DeMeester TR, Stein HJ. Minimizing the side effects of antireflux surgery. World J Surg 1992;16:335-6.

Edelman DS. Laparoscopic paraesophageal hernia repair with mesh. Surg Laparosc Endosc 1995;5:32-7.

Edye M, Salky B, Posner A, Fierer A. Sac excision is essential to adequate laparoscopic repair of paraesophageal hernia. Surg Endosc 1998;12:1259-63.

Ellis FH Jr, Crozier RE, Shea JA. Paraesophageal hiatus hernia. Arch Surg 1986;121:416-20.

Eypasch E, Williams JI, Wood-Dauphinee S, Ure BM, Schmulling C, Neugebauer E et al. Gastrointestinal Quality of Life Index: development, validation and application of a new instrument. Br J Surg 1995;82:216-22.

Frantzides CT, Richards CG, Carlson MA. Laparoscopic repair of large hiatal hernia with polytetrafluoroethylene. Surg Endosc 1999;13:906-8.

Guidelines for surgical treatment of gastroesophageal reflux disease (GERD). Society of American Gastrointestinal Endoscopic Surgeons (SAGES). Surg Endosc 1998;12:186-8.

Hashemi M, Peters JH, DeMeester TR, Huprich JE, Quek M, Hagen JA et al. Laparoscopic repair of large type III hiatal hernia: objective followup reveals high recurrence rate. J Am Coll Surg 2000;190:553-60; discussion 560-1.

Huntington TR. Short-term outcome of laparoscopic paraesophageal hernia repair. A case series of 58 consecutive patients. Surg Endosc 1997;11:894-8.

Karasick S, O'Hara AE, Karasick D, Rangarathnam CS. Supradiaphragmatic cyst following surgical repair of congenital diaphragmatic hernia. Radiology 1978;129:142.

Krahenbuhl L, Schafer M, Farhadi J, Renzulli P, Seiler CA, Buchler MW. Laparoscopic treatment of large paraesophageal hernia with totally intrathoracic stomach. J Am Coll Surg 1998;187:231-7.

Kuster GG, Gilroy S. Laparoscopic repair of paraesophageal hiatal hernias [letter]. Surg Endosc 1993;7:362-3.

Lamb JP, Vitale T, Kaminski DL. Comparative evaluation of synthetic meshes used for abdominal wall replacement. Surgery 1983;93:643-8.

Laparoscopic antireflux surgery for gastroesophageal reflux disease (GERD). Results of a Consensus Development Conference. Held at the Fourth International Congress of the European Association for Endoscopic Surgery (E.A.E.S.), Trondheim, Norway, June 21-24, 1996. Surg Endosc 1997;11:413-26.

Leese T, Perdikis G. Management of patients with giant paraesophageal hernia. Dis Esophagus 1998;11:177-80.

Martin TR, Ferguson MK, Naunheim KS. Managemant of giant paraesophageal hernia. Dis Esophagus 1997;10;47-50.

Maziak DE, Todd TR, Pearson FG. Massive hiatus hernia: evaluation and surgical management. J Thorac Cardiovasc Surg 1998;115:53-62.

Menguy R. Surgical management of large paraesophageal hernia with complete intrathoracic stomach. World J Surg 1988;12:415-22.

Ollyo JB, Lang F, Fontolliet C, Monnier P. Savary-Miller’s new endoscopic grading of reflux esophagitis: a simple, reproductible, logical, complete and useful classification. Gastroenterology 1990;98:A100.

Paul MG, DeRosa RP, Petrucci PE, Palmer ML, Danovitch SH. Laparoscopic tension-free repair of large paraesophageal hernias. Surg Endosc 1997;11:303-7.

Pitcher DE, Curet MJ, Martin DT, Vogt DM, Mason J, Zucker KA. Successful laparoscopic repair of paraesophageal hernia. Arch Surg 1995;130:590-6.

Rieger NA, Jamieson GG, Britton JR, Tew S. Reoperation after failed anti-reflux surgery. Br J Surg 1994;81:1159-61.

Savary M, Miller G. L’œsophage, manuel et atlas d’endoscopie. Soleure: Gassmann, 1977.

Skinner DB, Belsey RH. Surgical management of esophageal reflux and hiatus hernia. Long-term results with 1,030 patients. J Thorac Cardiovasc Surg 1967;53:33-54.

http://www.snfge.asso.fr/lavieprofessionnelle/rpc/manometrie.pdf
S.N.F.G.E. Manométrie œsophagienne chez l'adulte 1998. Recommandations de pratique clinique. Composition du Groupe de Travail et du Groupe de Lecture. GROUPE DE TRAVAIL - R. Jian, hépato-gastroentérologie, Président du groupe, Paris. - J. Boulant, hépato-gastroentérologie, Chargé de projet, Clermont-Ferrand. - R. Berrebi, médecine générale, Paris (accessed on Sept 16, 2002).

Snow LL, Weinstein LS, Hannon JK. Laparoscopic reconstruction of gastroesophageal anatomy for the treatment of reflux disease. Surg Endosc 1995;9:774-80.

Stylopoulos N, Rattner DW. The history of hiatal hernia surgery: from Bowditch to laparoscopy. Ann Surg 2005;241:185-93.

Swanstrom LL, Marcus DR, Galloway GQ. Laparoscopic Collis gastroplasty is the treatment of choice for the shortened esophagus. Am J Surg 1996;171:477-81.

Willekes CL, Edoga JK, Frezza EE. Laparoscopic repair of paraesophageal hernia. Ann Surg 1997;225:31-8.

Williamson WA, Ellis FH Jr, Streitz JM Jr, Shahian DM. Paraesophageal hiatal hernia: is an antireflux procedure necessary? Ann Thorac Surg 1993;56:447-52.

Wright RC, Rhodes KP. Improvement of laryngopharyngeal reflux symptoms after laparoscopic Hill repair. Am J Surg 2003;185:455-61.

Wu JS, Dunnegan DL, Soper NJ. Clinical and radiologic assessment of laparoscopic paraesophageal hernia repair. Surg Endosc 1999;13:497-502.
